How to create an automated flow for a Telegram chatbot
The flow builder is the main tool to set up your bot to welcome new subscribers, assist users, sell products, and notify a manager about users’ questions in the chatbot. Also, a chatbot can gather information and send it to your system for future use.
All you need is to create keywords, design the bot’s structure, and drag-and-drop elements in the SendPulse flow builder.
Below you can find a detailed table of contents. Use it as a map for comfortable navigation to find all of the possible triggers and elements to get started adding them to your bot’s flow.
Choosing a trigger for your flow
By default, there are Welcome message, Standard reply, and Unsubscribe from bot flows. And you can create your own new triggers to get more functionality.

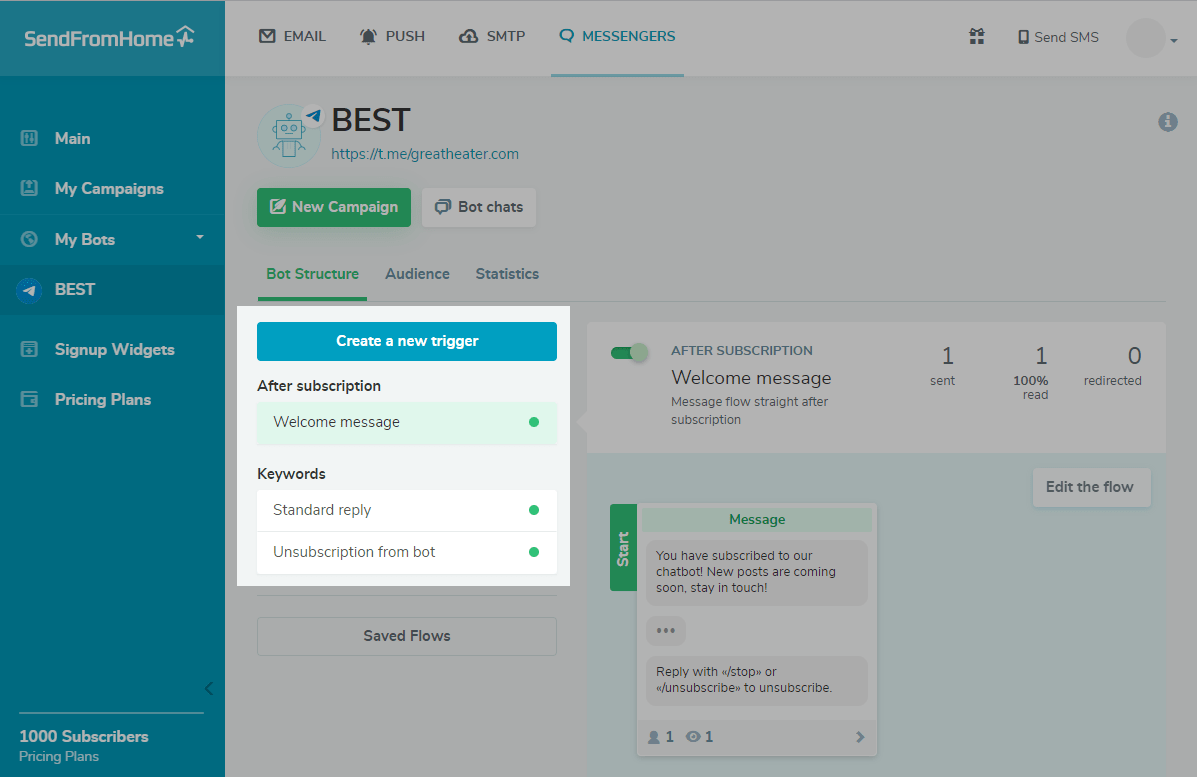

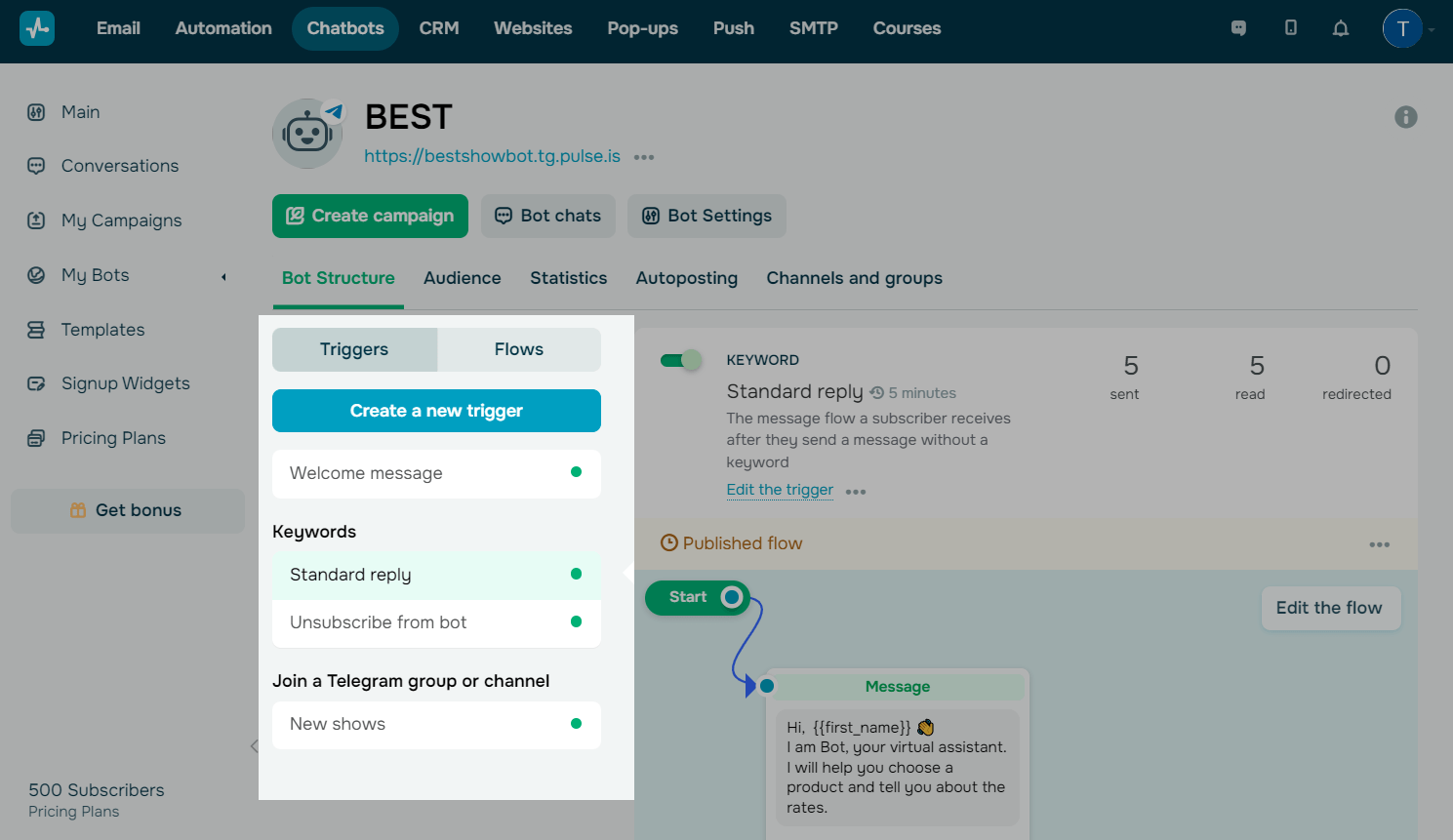

Choose your bot. Go to the Bot Structure tab and choose a trigger.
Welcome message | This flow starts after a user subscribes to your chatbot by clicking the Start button.
To subscribe, users can follow your chatbot link (https://t.me/username), type in your bot's @username in Telegram, or use a website widget. This flow introduces your bot to users, so make sure to outline your chatbot's purpose and features and explain how it can help users. |
Standard reply | This flow starts when a user asks a question that falls outside your bot’s scenario or sends an image to your bot.
You can add a message to let users know that a manager will contact them during business hours. |
Unsubscription from the bot | This one-message flow starts after a user unsubscribes from your chatbot using the /stop or /unsubscribe command. |
Trigger | This flow starts when your custom trigger is fired.

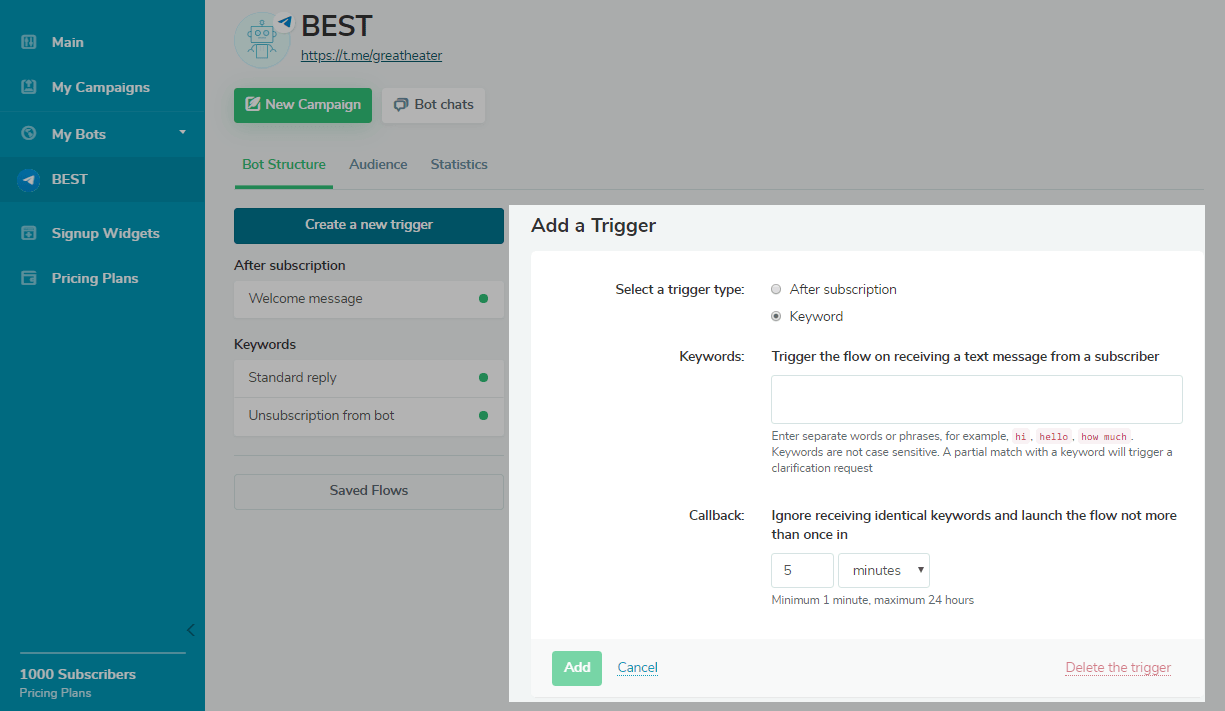

To add your own trigger, click Create a new trigger. Select a trigger type: Keyword, A360 event, or Join a Telegram group or channel. Read more: How to set up Telegram chatbot flow triggers and How to manage chatbot flow triggers. |
You can also activate and edit the Privacy Policy flow so that when a subscriber uses the /privacy
command, they will receive a message with your privacy policy.
Building your flow
It’s important to think about the architecture and logic structure of your bot carefully. A well-designed bot will let users easily get a reply to their questions or place an order successfully by providing the necessary information.
Formulate the bot’s tasks, divide its functions into sections, think of how you will connect the elements, and start creating your bot’s flow using our drag-and-drop builder.
To start setting up a flow, select a trigger, and click Edit flow. If you want to use your own trigger, click Create a flow.
Learn more about chatbot types and development strategies on our blog and YouTube channel. You can also select a ready-made flow template, copy a flow from another bot, or generate a flow using OpenAI.
Let's talk about chatbot builder elements. All elements are optional, so you can stop even at the first message without adding any more elements.
Start
You can choose the first element that launches your flow: Message, Filter, Randomizer, and API Request.
For example, using the Filter and API Request elements, you can check the subscriber's data and personalize your communication by starting your flow only for those users who have or do not have the requested data or branch your flow and send different messages. Using the Random choice element, you can diversify your chatbot's auto-replies or create an A/B test.
To make an element a start element, connect the desired element to the Start.

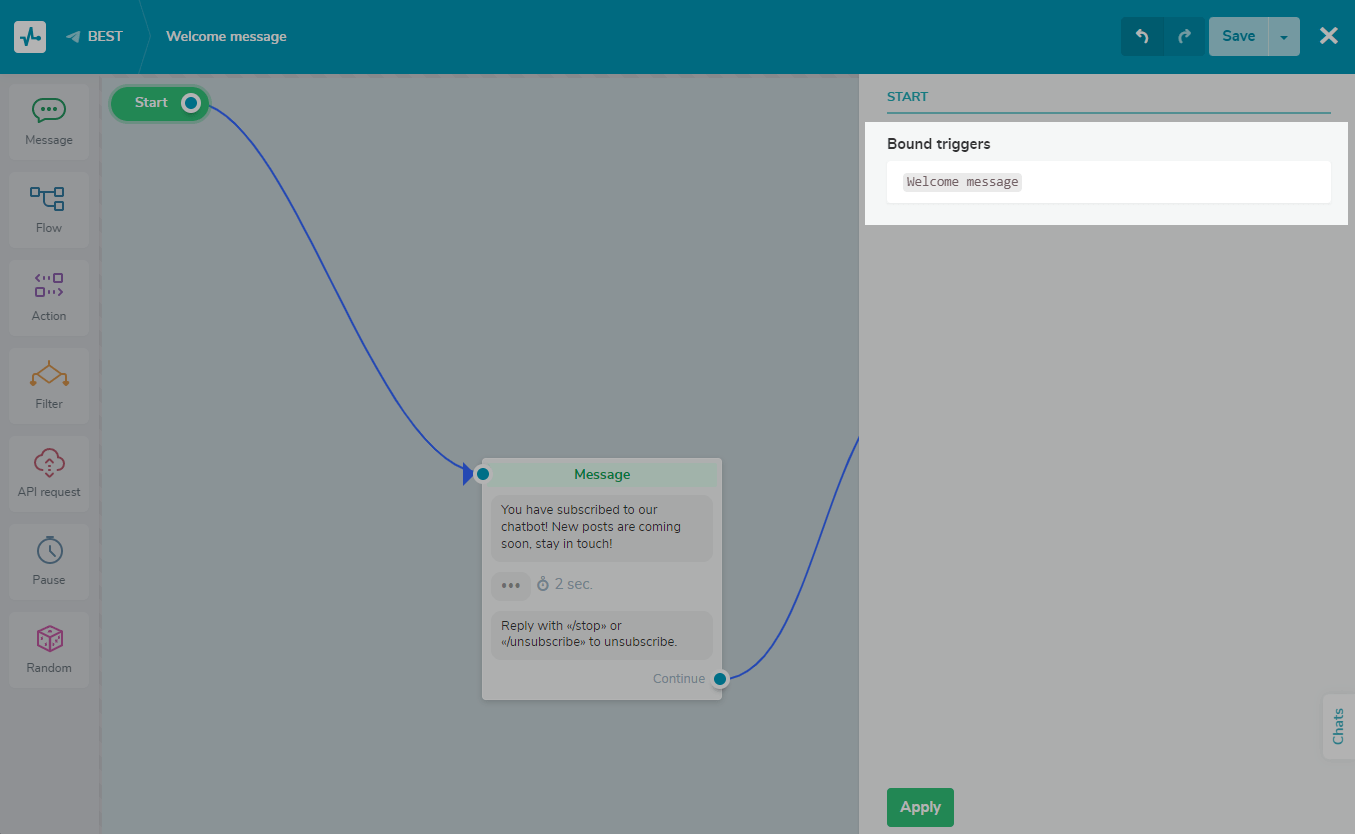

To see which trigger starts your flow, click on the Start.
The Message element
Use the Message element to create a message of any type and add various blocks to it: text, mediafiles, buttons, user data request, and so on.
For example, you can thank a user for their order, confirm the order, and clarify order details, including your acquired variable data.
Text
Use the Text element to add text.
In the text field, enter up to 2,000 characters of your message text. You can add variables and emoji to personalize your message and format your text to highlight key points.
Buttons
Use the Button element to engage subscribers, set your chatbot scenario direction, add a link, and accept payments.

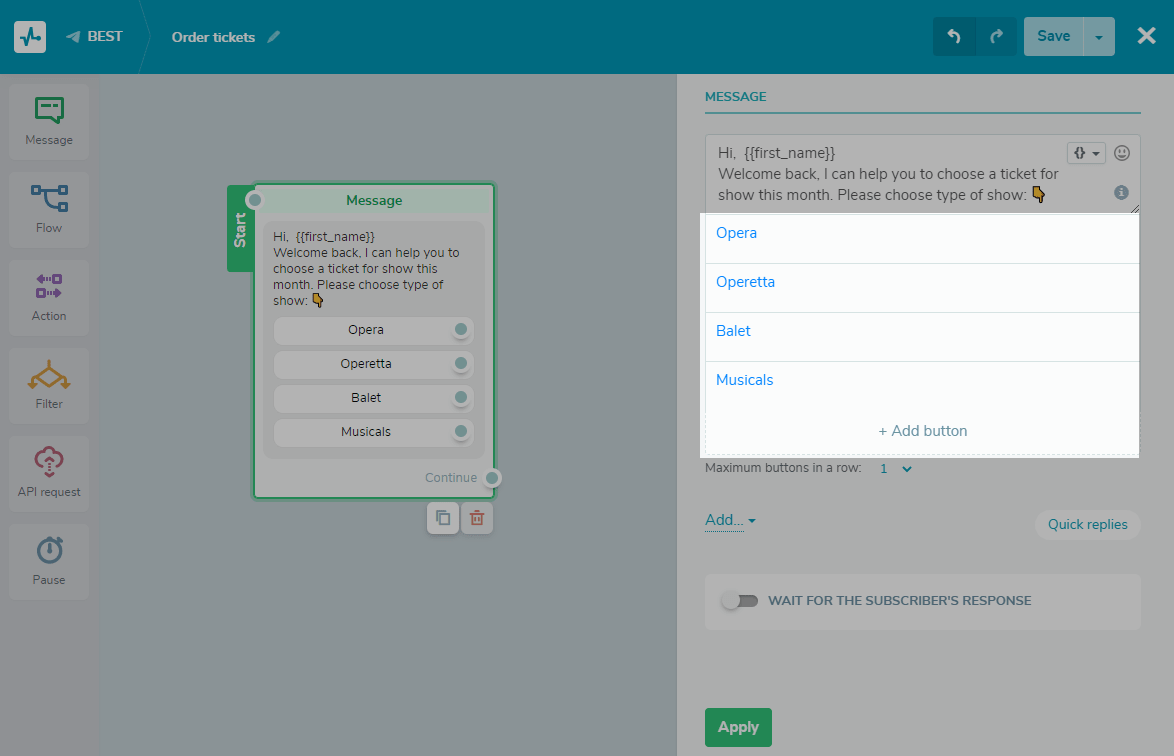

To add a button, click + Add Button. Select the type of button: Continue flow, URL or Payment.

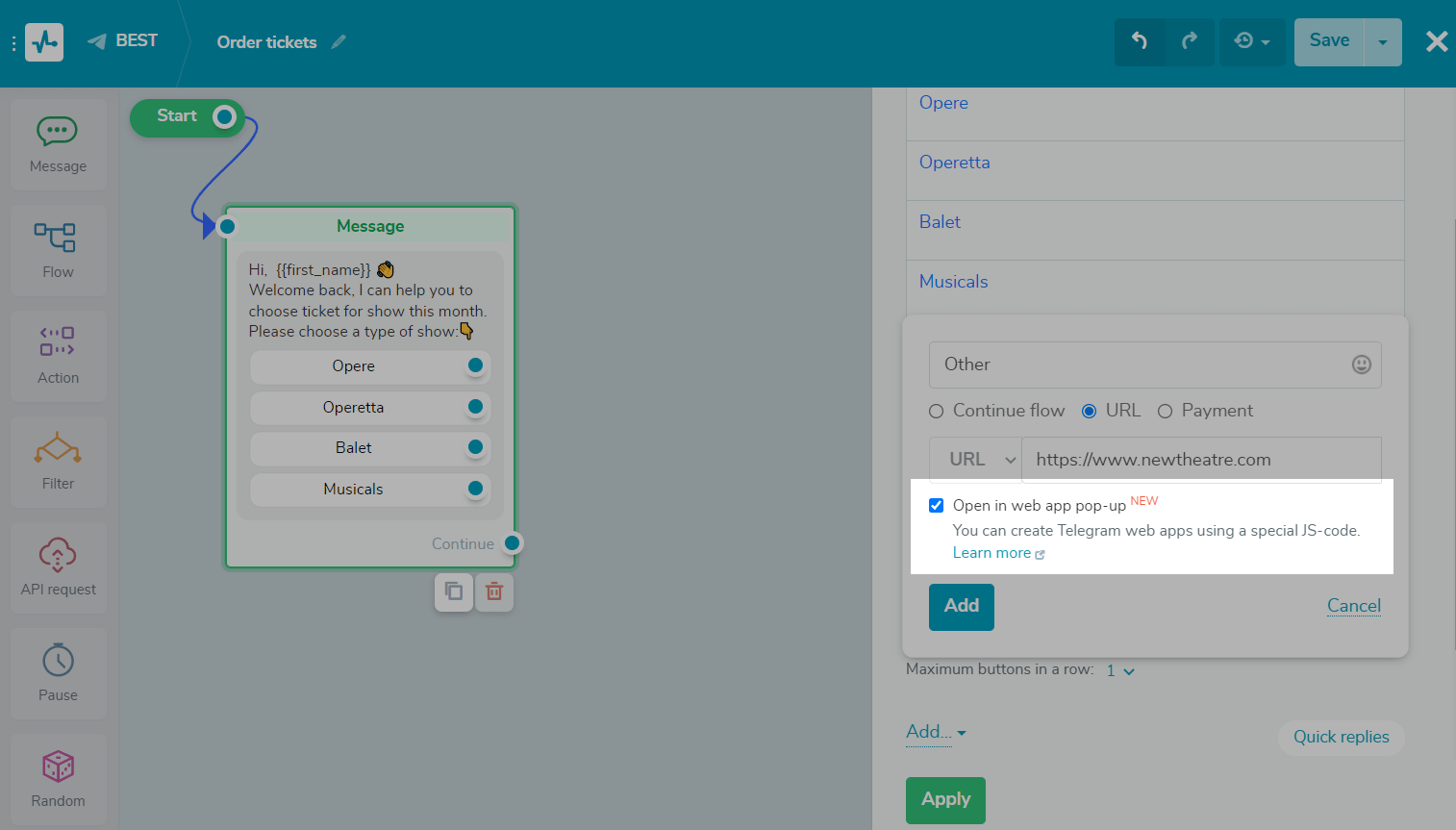

Also, for the URL button type, you can add a web application link, for example, a one-page online store. Select the Open in web app pop-up checkbox to open a pop-up window with the specified link to the application.
You can create an online store with products, a shopping cart, and a data collection form and add links to Telegram buttons. Users can click them and complete their purchases in a separate window.
You can install Telegram JS code on your page — it works with data transferred from the messaging platform, including subscriber information.
To use the Launch inline search button type, you need to create an inline search menu in your bot settings and then add it from the dropdown list.

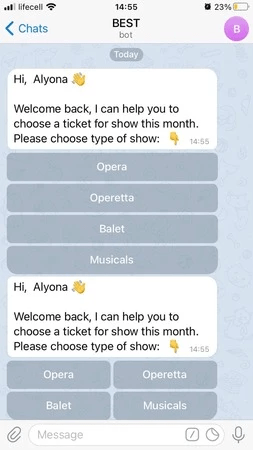

You can add up to 13 buttons and for the Continue flow type and choose the layout that suits you best — from 1 to 4 in a row.

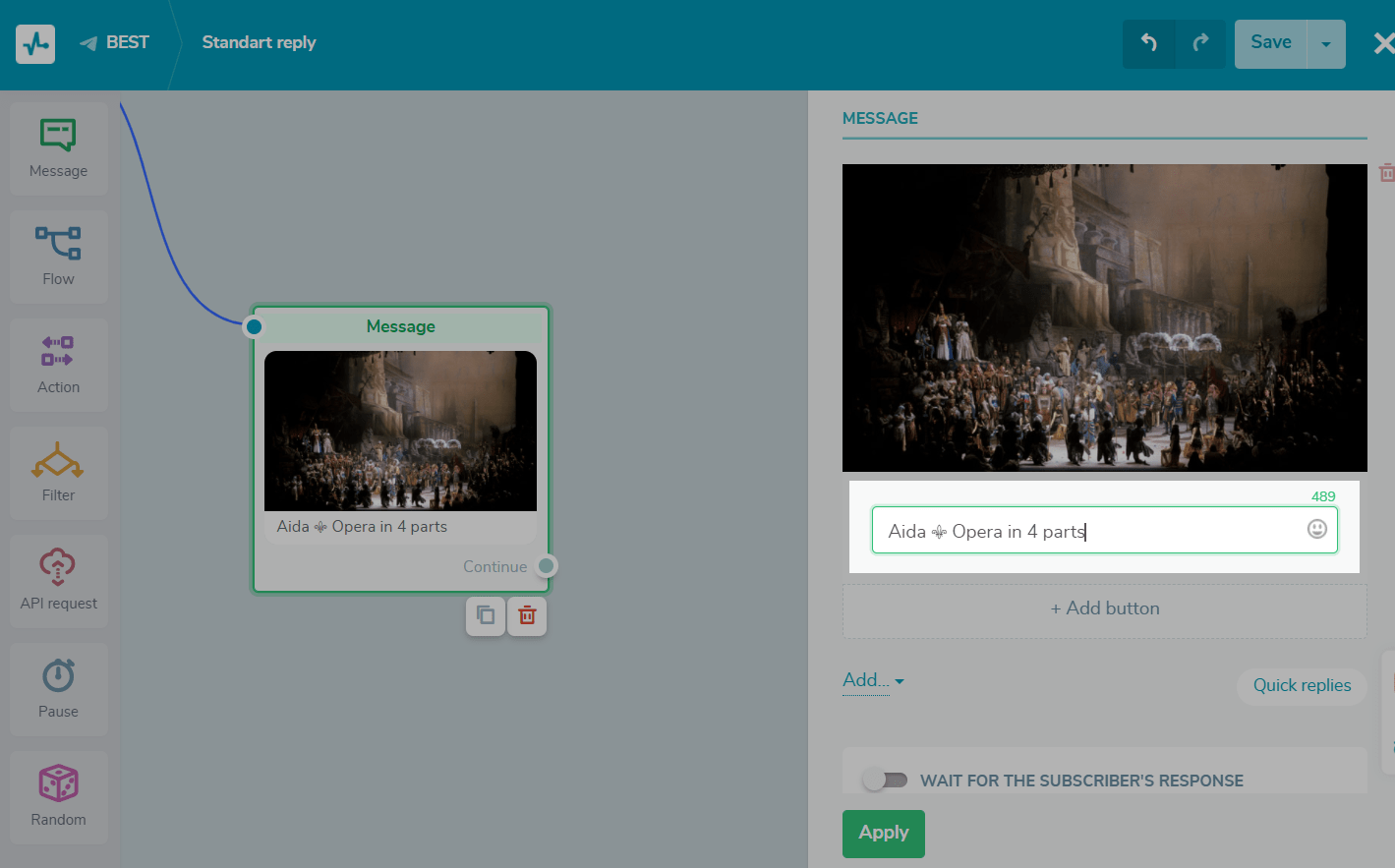

Images
Use the Image element to diversify your messages by using visual content that relates to your text.

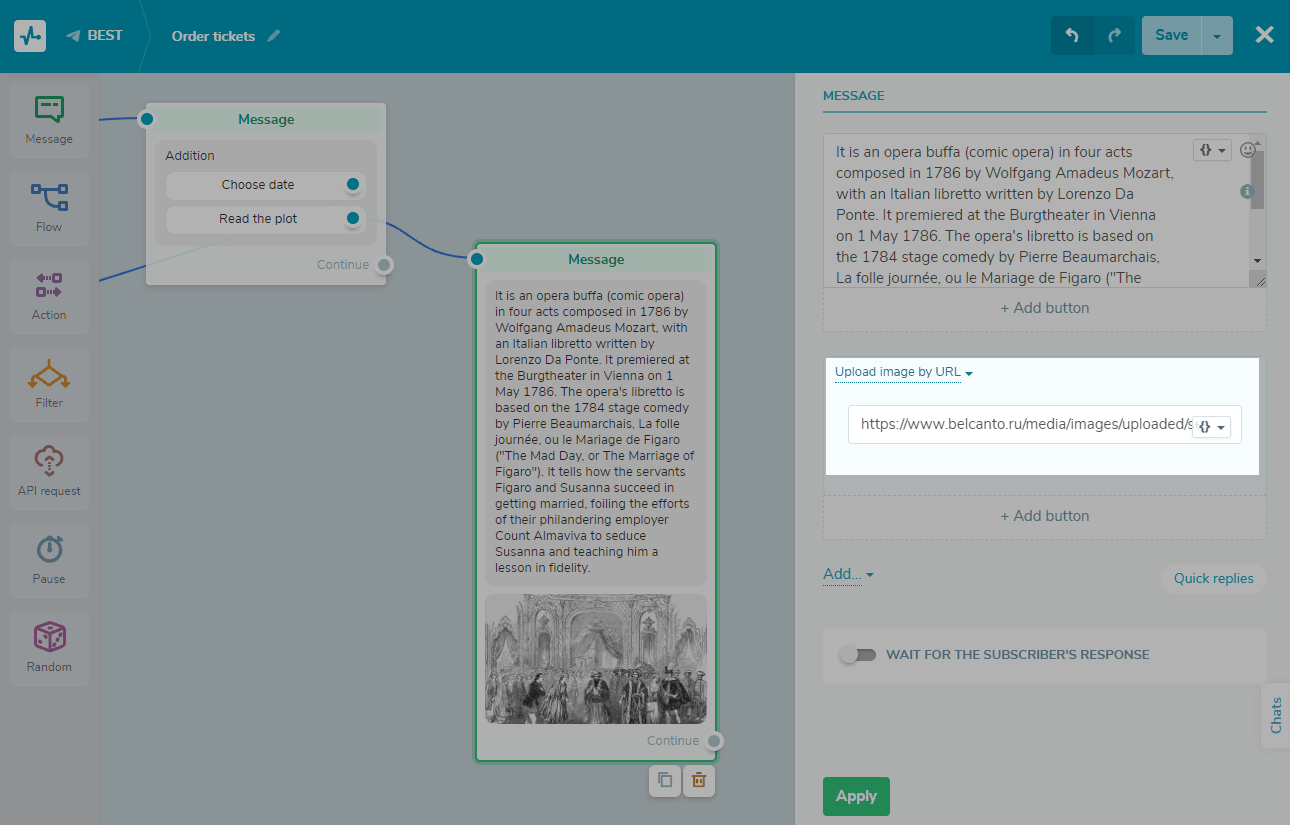

To add a picture, click Add and select the Image element. Select how to add your image (as a file or link). You can also specify a dynamic path to the image link.

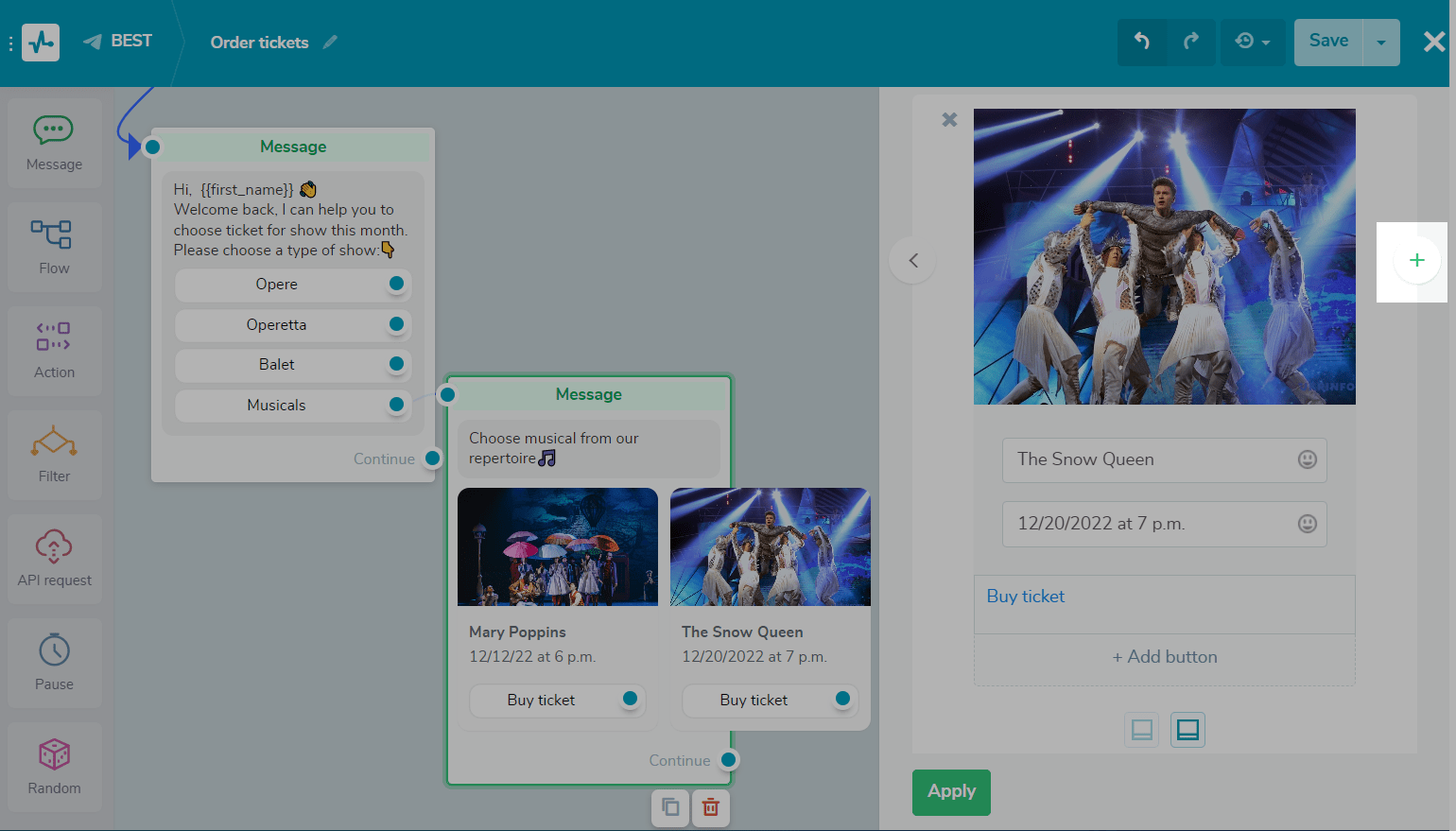

Carousel

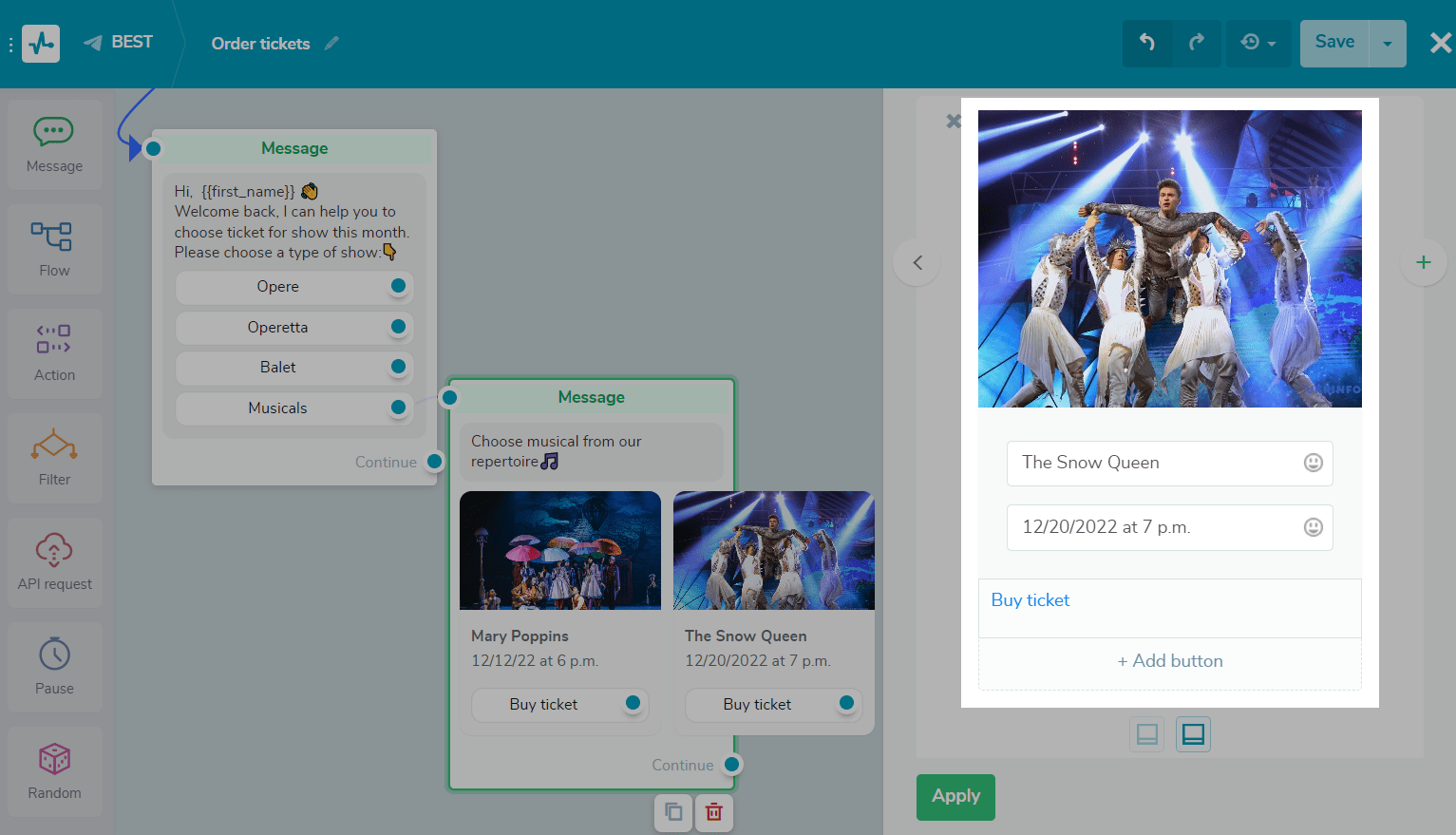

Use the Carousel element to show up to 10 cards. You can add a title, description, image, and buttons of any type to your card.
Click Add, and select the Carousel element.

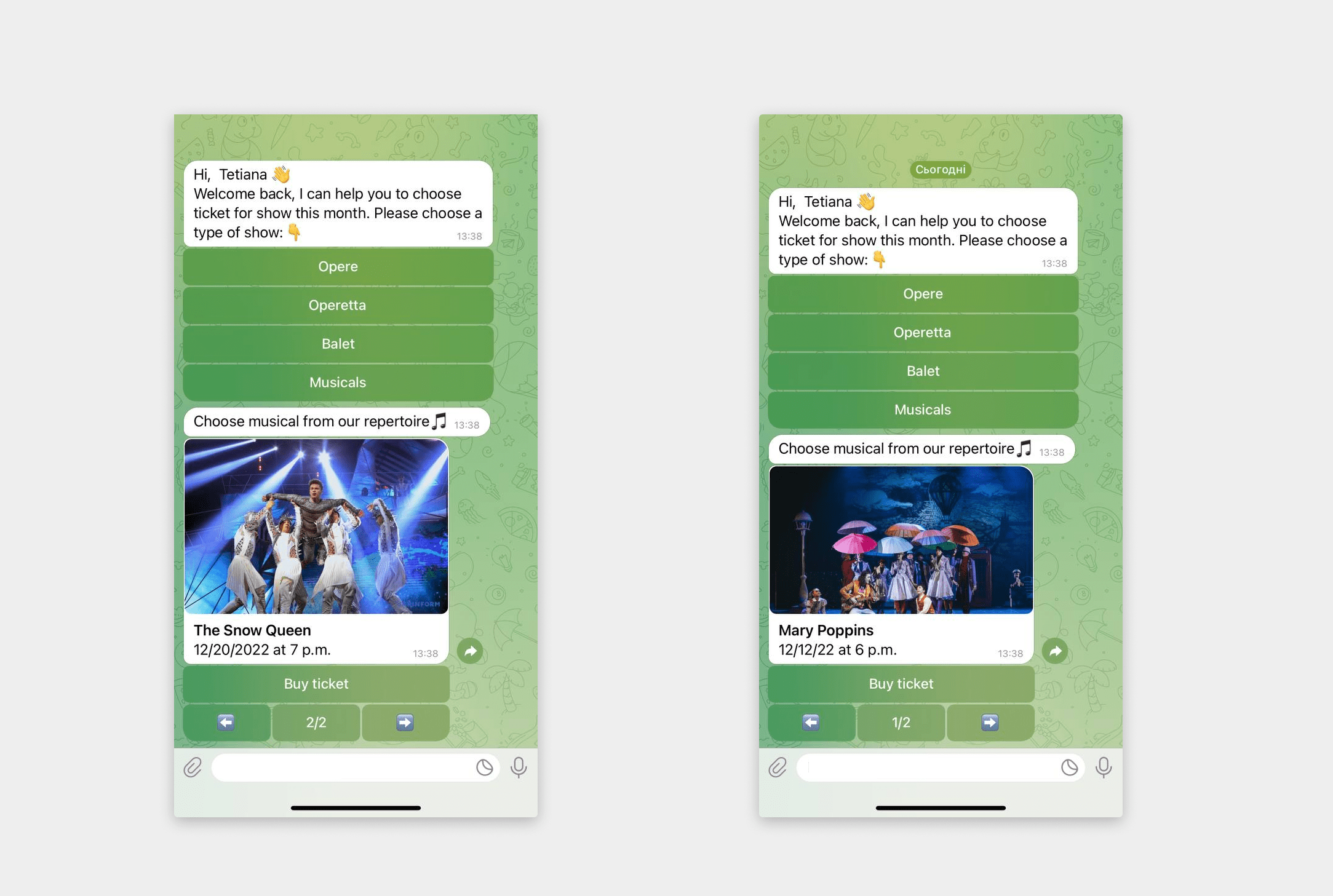

Telegram does not have the standard carousel functionality. Your carousel will be displayed as a single message with the right and left buttons that users need to click to see all your cards.

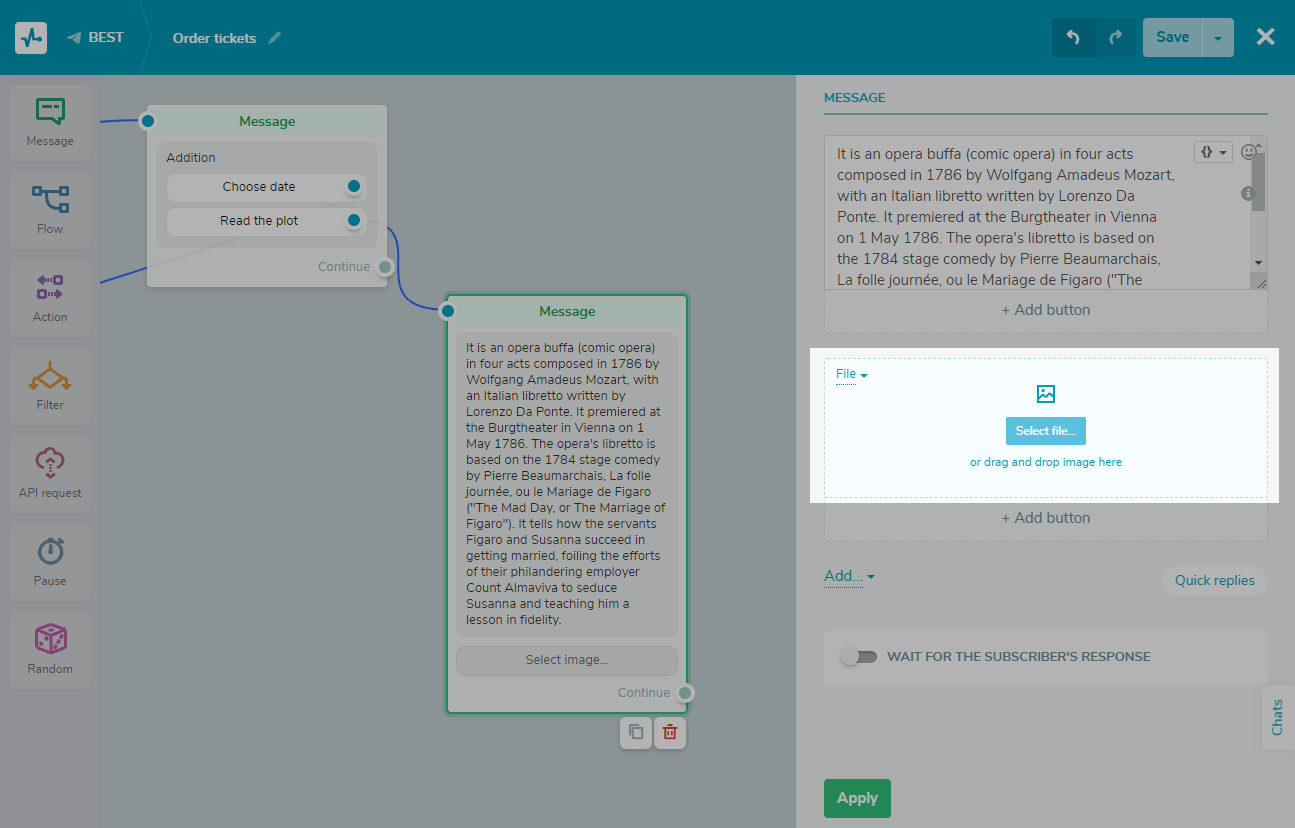

File
Use the File element to add files of any format, except executable (.exe) files, up to 20 MB in size. Upload tickets, cards, checklists, instructions, or other files.
Click Add, and select the File element. Select how to add your file (as a file or link).
Audio

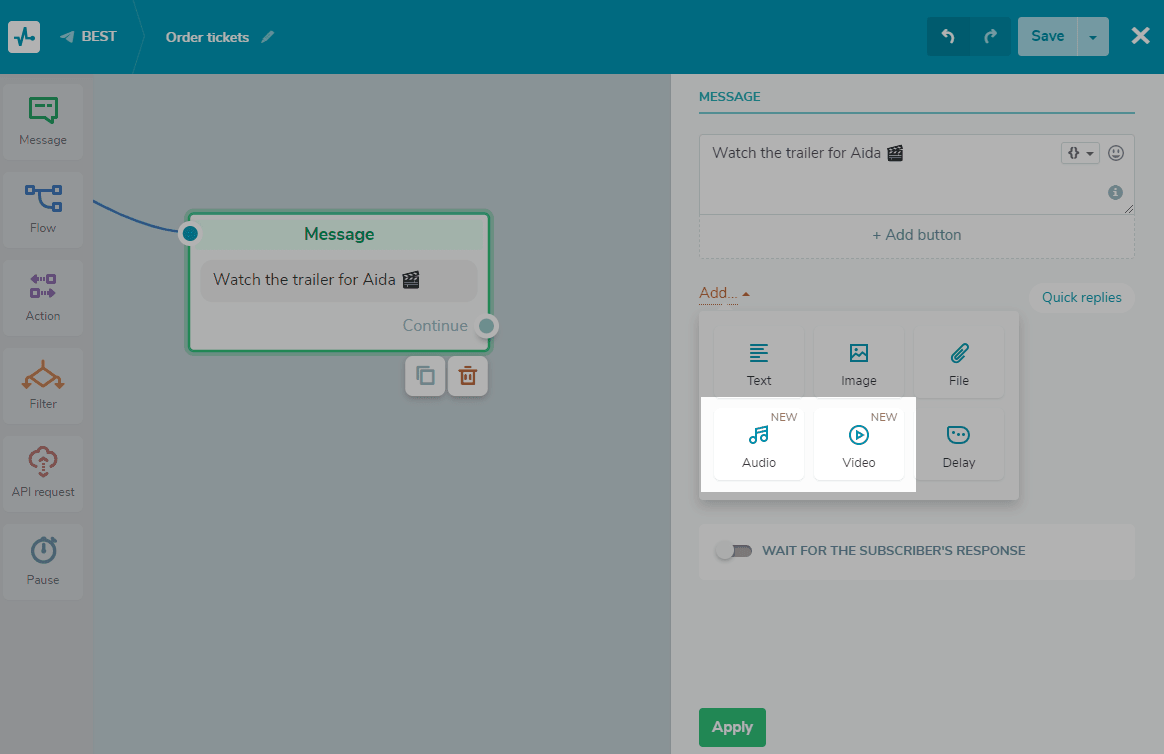

Use the Audio element to send audio tracks.
Click Add, and select the Audio element. Select how to add your audio track (as a file or link).
You can also show your audio track as a voice message.
Video
Use the Video element to send videos.
Click Add, and select the Video element. Select how to add your video (as a file or link).
You can also send larger files by attaching them via a link from a Telegram channel. Learn more: How to add a 2 GB Telegram video to a chatbot message.

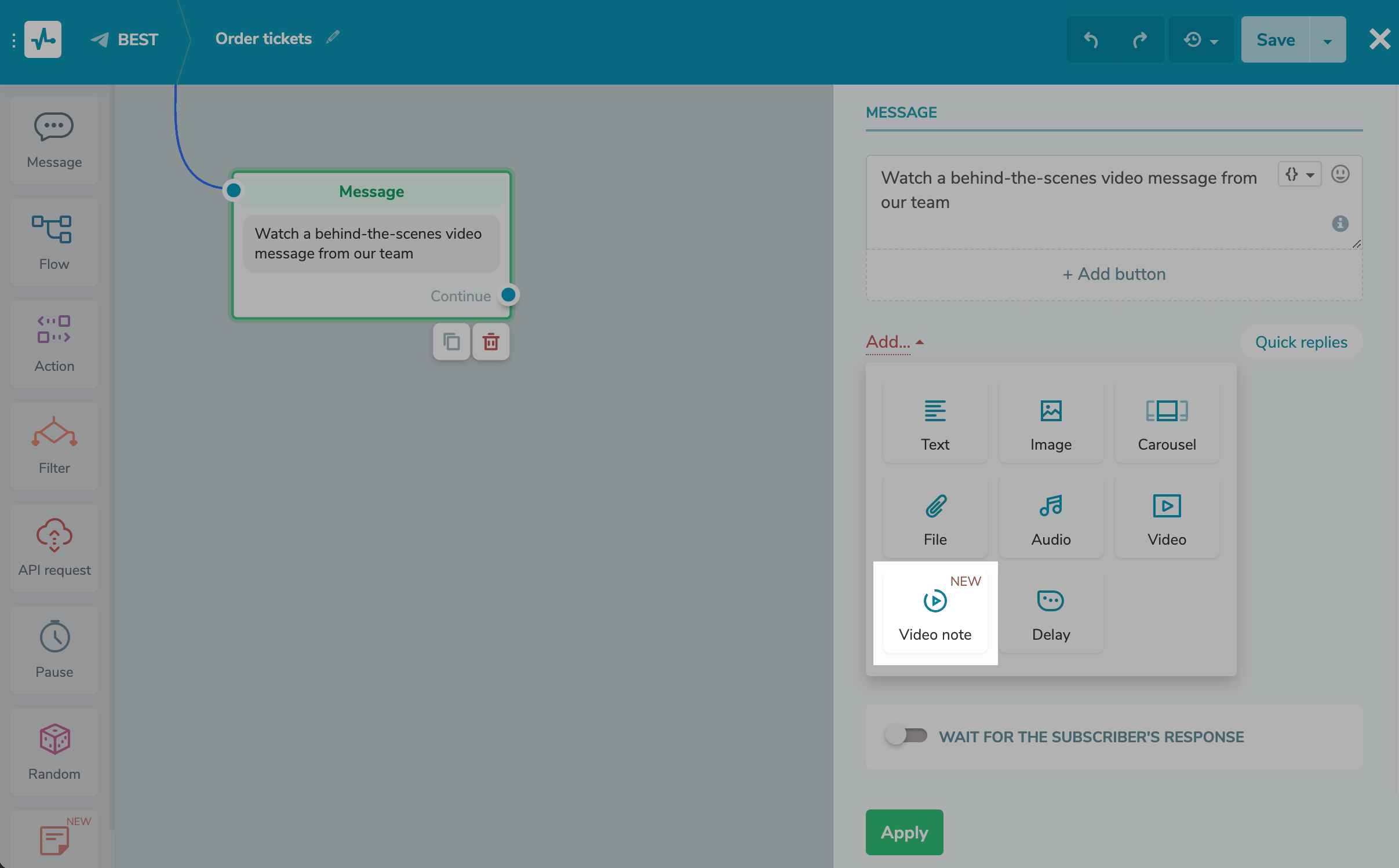

Video note
Use this option to send short video messages. These videos are often recorded using the front camera to quickly address one’s audience. Your uploaded video will be cut down to 1 minute and displayed as a circle. You can add a file that’s up to 20 MB in size in the MP4 format.
Click Add, select the Video note element, and upload file.
Delay
Use the Delay element to break long messages into smaller passages of up to 4 lines each.
Click Add, select the Deay element, and enter a value in seconds — from 1 to 5.

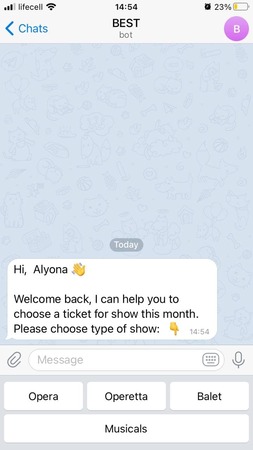

Quick replies
The Quick replies element appears as a keyboard menu and disappears when a user clicks it. You can use this element to branch your chatbot flow.
To add quick replies, click Quick replies in the editing panel of the Message element, and enter up to 20 characters of text and emoji as your button name. You can also add a variable to substitute dynamic values.
Waiting for the subscriber's response

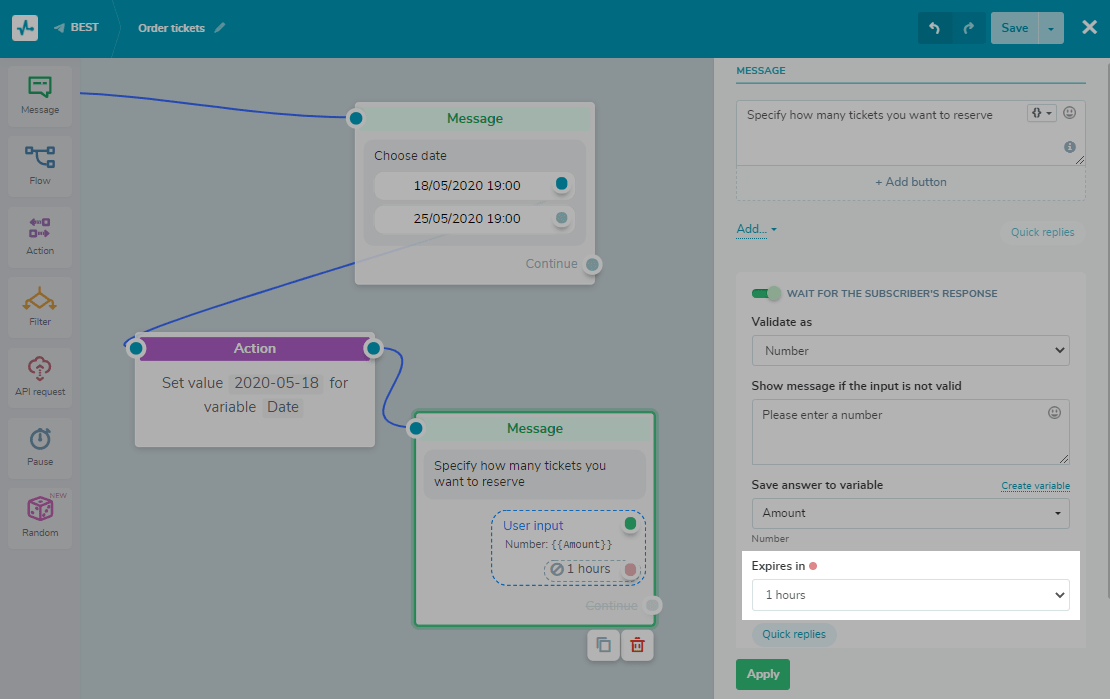

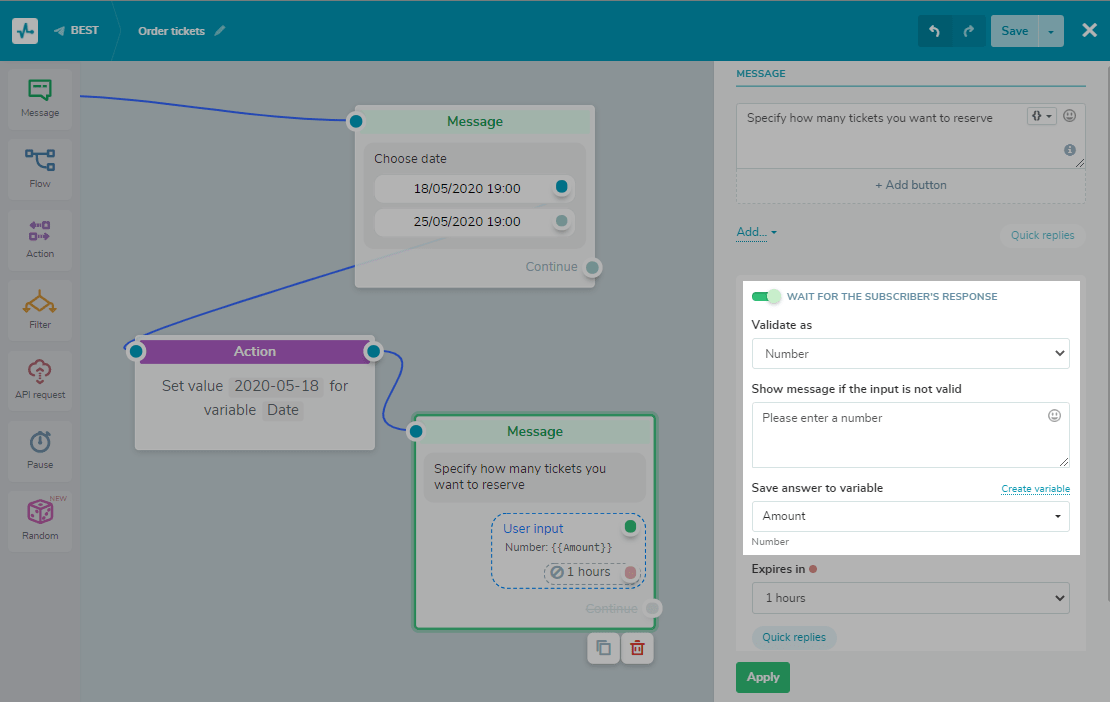

Use the Waiting for the subscriber's response element to collect and save subscriber replies to variables.
Turn on the Waiting for the subscriber's response toggle. Select a validation type, type in a message users will receive if they enter invalid data, and select the variable to which you want to save the data.
You can also add quick replies so that users select from the options you offer instead of entering their own values.
Moving elements

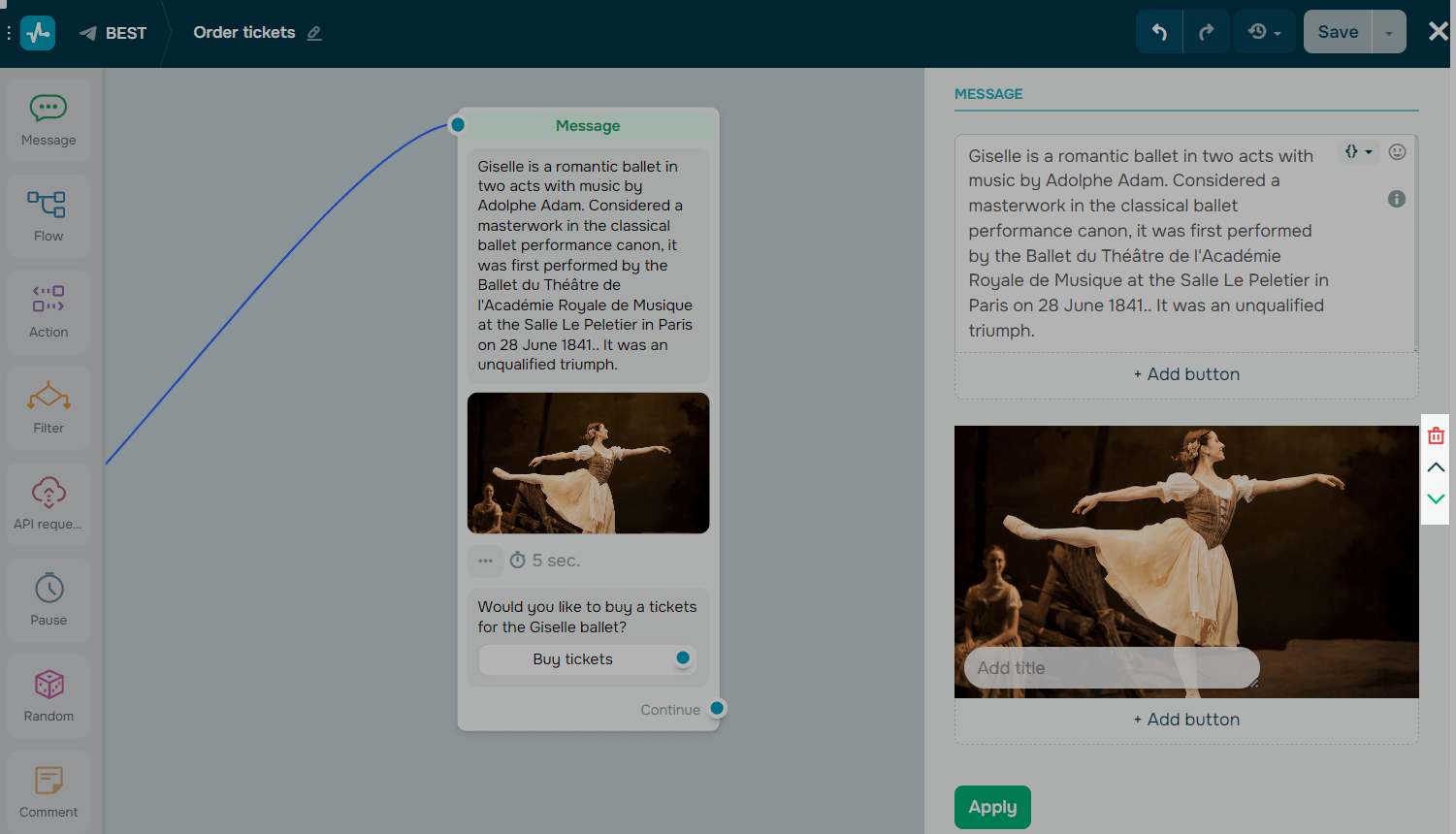

By default, each element you add is placed at the end of the message element you are working on. Hover on the element that you want to move up or down and click on the corresponding button.
Continuing the flow
You can connect the next element after the Message element using the button or the Waiting for subscriber's response option. You can also continue your flow without waiting for the user's response. We recommend using it with the Pause element to check if the subscriber interacted with the flow and send a message after a particular time.
When planning a flow scenario, keep in mind that you cannot both continue your flow using the Continue connector and use quick replies.
You can connect an unlimited number of blocks via blocks where user interaction is provided, and up to 100 blocks using the Continue connector.
Connecting elements
Drag a line from the blue drop of one element to another element to connect them.
Click on the line twice and you will see a button to remove a connection.
The disconnected elements will be highlighted in yellow, remember that you need to link it to another element.
Elements with empty fields will be highlighted in red, reminding that you need to fill in fields. For example - if you added a button, but did not enter text for it or used a link element, but did not enter a URL. You cannot save your flow until you fill in these fields.
You can link an unlimited number of elements to elements that wait for user response and link up to 100 elements to the Continue button.
The Flow element

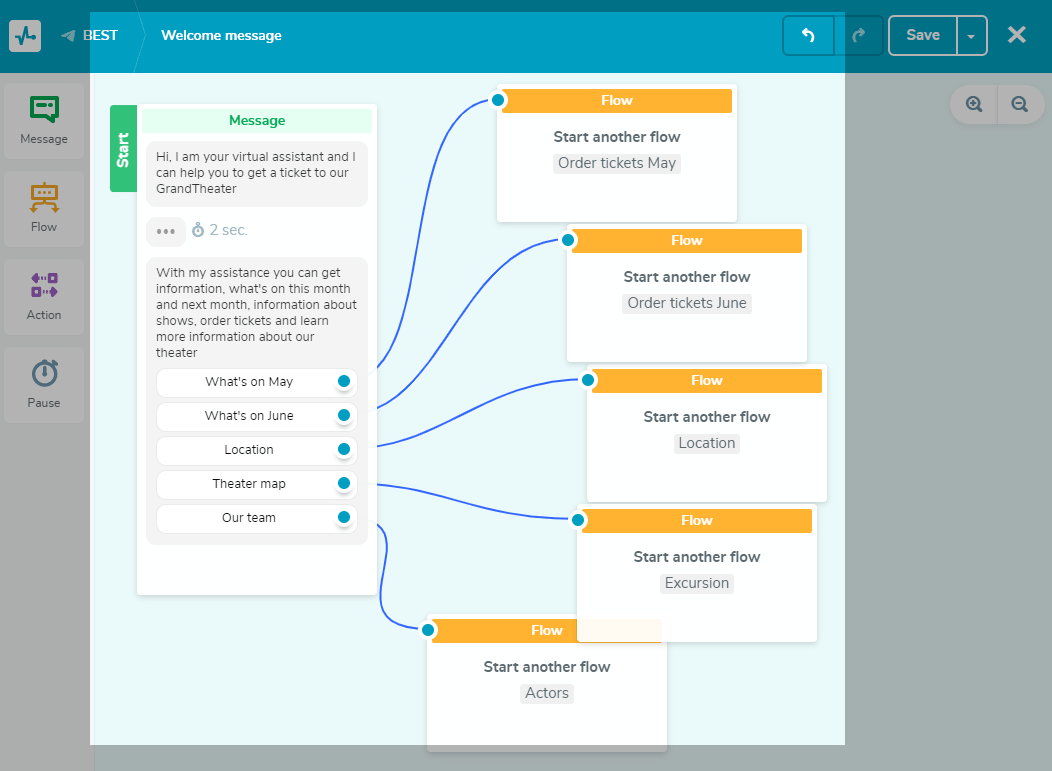

Use the Flow element to simplify your bot’s structure and move your user to another flow.
To do this, add an element, then choose the Flow element and select the flow you want to link from the drop-down list.
The Flow element will be the last element in this branch of your existing flow. You cannot link it to another element to continue the original flow.
The Action element
Use the Action element to apply certain actions to a contact or its data. Select the element in the panel on the left and drag it after the block you're tracking. Then select what action you want to create.
The Filter element
Use the Filter element to segment customers based on their personal data and previous messages received.
Select the Filter element in the left sidebar, and drag it after the element that will start your script branching.
Then select the condition itself. Combine conditions by adding the operators any
or all
, or add independent additional conditions.
After adding conditions, add the additional flow elements to each of the Filter element options if the condition is met (green dot) or not met (red dot).
The API Request element
Use the API Request element to send requests to a third party server to create objects or retrieve data. Get data and use it in your chatbot messages.
You can save the received data to a variable or add it to a message as JSONPath.
Drag the API Request element to the workspace, connect it to the element, after which you want to retrieve data. Select the type of request and enter the URL to send the request to.
After testing the request and receiving a successful response, configure the mapping settings.
The Pause element
Use the Pause element to set up the period during which no automatic messages are sent to the subscriber. The pause can be set in minutes, hours, or days.
For example, you can use this option to indicate business hours or promotion hours.
Select the Pause element on the left, and edit it in the opened panel.
The Random element
Use the Random element to send elements from your chatbot script at random for A/B testing, creating quizzes, and more. You can customize the size of the recipient group for each option, send random information, and test different chatbot scenarios.
Drag the item Random element to the working area, connect it to the element you start branching the script from.
The Comment element
Use the Comment element to add comments about your flow performance for yourself or your team. Only you and other team members can see this element.
Drag the Comment element from the sidebar, and enter your comment text in the panel on the right. You can add up to 512 characters of text, links, and emoji.
Save and launch your flow
Once you’ve added and linked all the elements, save your flow before exiting. Click Save and send it to yourself to test your flow. Then, click Save and exit.
Make sure to add at least one Message or Action element.
You can view the total number of sent and read messages and clickthroughs in your flow and its messages in the Structure bot tab.

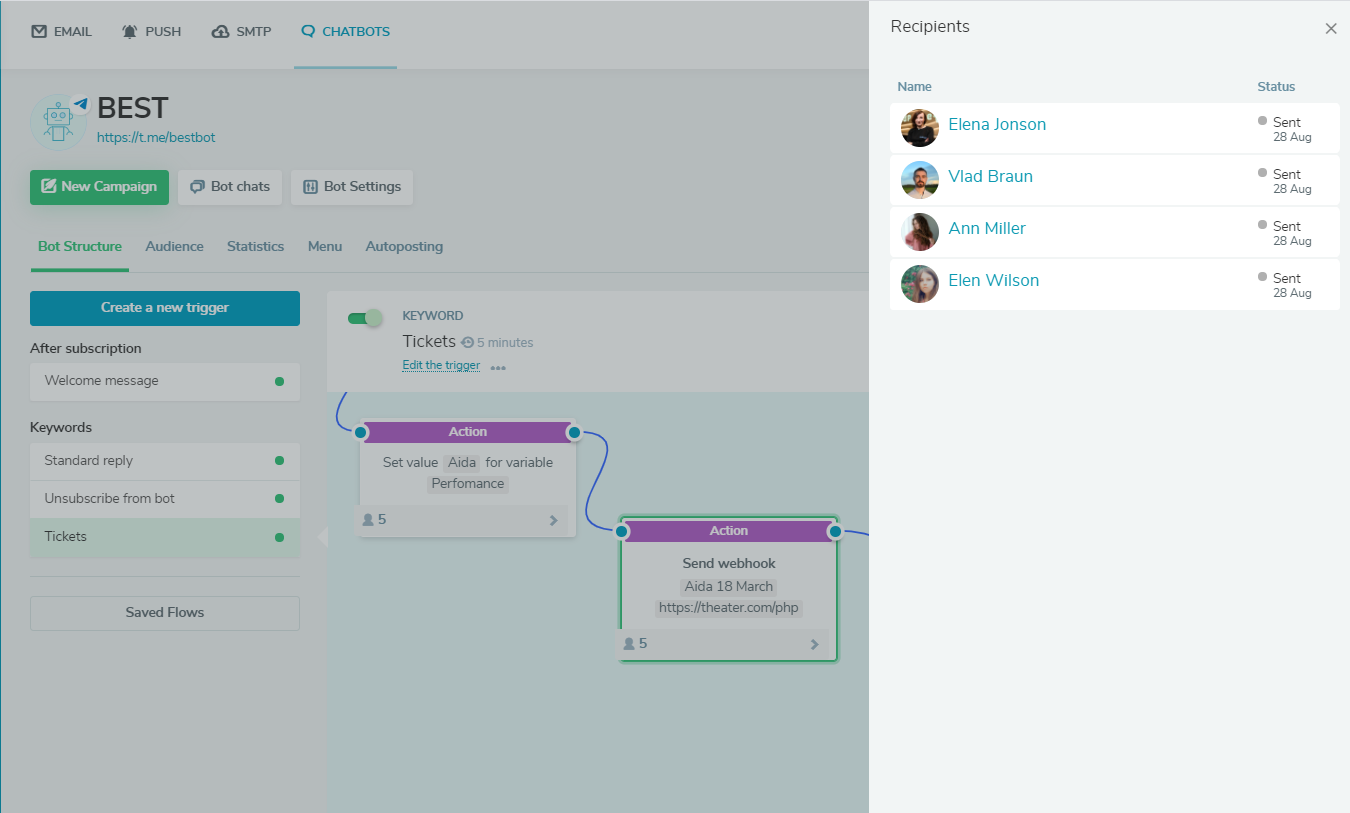

You can also track button clickthrough statistics in flow messages. Click the number on a button to see who clicked it.
Last Updated: 03.09.2024
